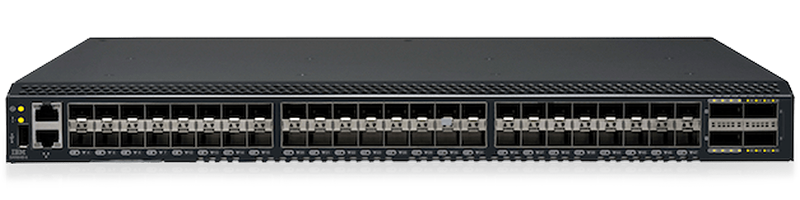

IBM Storage Networking SAN64B-6 Switch
Meet the demands of hyper-scale virtualization, larger cloud infrastructures and growing flash-based storage environments


IBM Storage Networking SAN64B-6 Switch

IBM Products
IBM Storage Networking b-type Switches
IBM Storage Networking SAN64B-6 Switch (Front/Port-Side Exhaust)
#8960-F64
Contact us for Pricing!
IBM Storage Networking SAN64B-6 Switch (Rear/Non-Port Side Exhaust)
#8960-N64
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

The IBM Storage Networking SAN64B-6 switch is designed to meet the demands of hyper-scale virtualization, larger cloud infrastructures and growing flash-based storage environments by delivering market-leading Gen 6 Fibre Channel technology and capabilities. SAN64B-6 provides a high-density storage networking building block for increased scalability designed to support growth, demanding workloads and data center consolidation in small to large-scale enterprise infrastructures.

  • Increase performance for demanding workloads across 32 Gbps and 128 Gbps links; shatter performance barriers with up to 100 million input/output operations per second (IOPS)
  • Optimize end-to-end performance and availability tuning with IO Insight and VM Insight intelligence
  • Enable flexible “pay-as- you-grow” scalability
  • Provide high scalability in an ultra-dense, 1U, 64-port switch to support high-densit y server virtualization, cloud architectures and flash- based storage environments
  • Detect degraded application performance with built-in device latency and IOPS metrics

Ultra-dense, highly scalable, easy-to-use, enterprise- class storage networking switch

Today’s mission- critical storage environments require greater consistency, predictability and performance to keep pace with growing business demands. Faced with explosive data growth, data centers need more input/ output (I/ O) capacity to accommodate massive amounts of data, applications and workloads. In addition to this surge in data, collective expectations for availability continue to rise. Users expect applications to be available and accessible from anywhere, at any time, on any device.

To meet these dynamic and growing business demands, organizations need to deploy and scale up applications quickly. As a result, many are moving to higher virtual machine densities to enable rapid deployment of new applications and deploying flash storage to help those applications scale to support thousands of users. To realize the full benefits of these architectures, organizations need the network to deliver the performance required by today’s server and storage environments. By treating the network as a strategic part of a highly virtualized environment, organizations can increase optimization and efficiency even as they rapidly scale their environments.

The IBM Storage Networking SAN64B-6 switch is designed to meet the demands of hyper-scale virtualization, larger cloud infrastructures and growing flash-based storage environments by delivering market-leading Gen 6 Fibre Channel technology and capabilities.

SAN64B-6 provides a high-density storage-networking building block for increased scalability designed to support growth, demanding workloads and data center consolidation in small- to large-scale enterprise infrastructures. Delivering unmatched 32/128 Gbps performance, industry-leading port density and built-in instrumentation, SAN64B-6 accelerates data access and drives always-on business.

SAN64B-6 is built for maximum flexibility, scalability and ease of use. Organizations can scale from 24 to 64 ports with 48 enhanced small-form-factor pluggable (SFP+) transceivers and four Q-Flex ports with four quad small-form-factor pluggable (QSFP) transceivers, all in an efficient 1U package. A simple deployment process and a point-and-click user interface make the switch easy to use. With SAN64B-6, organizations gain the best of both worlds: high-performance access to industryleading storage technology and “pay-as-you-grow” scalability to support an evolving storage environment.

Gen 6 Fibre Channel

Gen 6 Fibre Channel is the purpose-built n etwork infrastructure for mission- critical storage, delivering breakthrough performance, increased scalability and operational stability. With Gen 6 Fibre Channel and Fabric Vision technology (including both IO Insight and VM Insight), SAN64B-6 deliv ers unmatched 32/1 28 Gbps performance, industry- leading port density and built-in ins trumentation. These next- generation storage networking technologies and capabilities enable SAN64B-6 t o accelerate data access, adapt to evolving requirements and drive always-on busin ess operations for hyper- scale virtualization, larger cloud infrastructures and growing flash- based storage environments.

Features:

Maximize performance for application and solid-state storage architectures

Faced with unpredictable virtualized workloads and growing flash storage environments, organizations need to ensure that the network does not become a bottleneck. SAN64B-6 delivers increased performance for dynamic workloads through a combination of market-leading throughput and low latency across 32 Gbps and 128 Gbps links. SAN64B-6 shatters application performance barriers with up to 100 million IOPS and 700-nanosecond latency to meet the demands of flash-based storage workloads. At the same time, port-to-port latency is minimized through the use of cut-through switching at 32 Gbps. The 48 SFP+ ports provide 32 Gbps connections, and each Q-Flex port is capable of either 128 Gbps parallel Fibre Channel using QSFP-to-QSFP Inter-Switch Link (ISL) connectivity or 128 Gbps QSFP to four 32 Gbps SFP+ device connectivity using breakout cables, both methods simplifying cabling infrastructure.

Administrators can achieve optimal bandwidth utilization, high availability and load balancing by combining up to eight ISL connections in a 256 Gbps framed-based trunk. This can be achieved through eight individual 32 Gbps SFP+ ports or two 128 Gbps QSFP ports. Moreover, exchange-based Dynamic Path Selection (DPS) optimizes fabric-wide performance and load balancing by automatically routing data to the most efficient, available path in the fabric.

Simplify scalability and management complexity

SAN64B-6 features up to 64 Fibre Channel ports in an efficiently designed 1U form factor, delivering industry-leading space utilization for simple scalability and consolidation, reducing costs and complexity

This enterprise-class switch offers “pay-as-you-grow” scalability with ports on demand (PoD) capability to quickly, easily and cost-effectively scale from 24 to 64 ports with a combination of 12-port SFP+ PoD and 4-port Q-Flex PoD that equates to a 16-port SFP+ PoD. The 48 SFP+ ports support 4, 8, 10, 16 and 32 Gbps Fibre Channel speeds, while each of the four Q-Flex ports is capable of supporting a single 128 Gbps Fibre Channel link using QSFP optics to deliver 4-to-1 cable consolidation or four 32 Gbps Fibre Channel links using QSFP to SFP+ breakout cables. With its flexible PoD capability, SAN64B-6 provides excellent overall value and the agility needed to deliver rapid deployments to meet user demands and support higher growth.

Along with simplifying scalability, SAN64B-6 simplifies end-to-end network management by automating monitoring and diagnostics through Fabric Vision technology, deploying with the EZSwitchSetup wizard and validating cables, ports and optics with the ClearLink Diagnostic Ports (D_Ports).

Gain control and insight to quickly identify problems and meet critical SLAs

SAN64B-6, with its Gen 6 technology and built-in instrumentation, offers organizations the insight and control necessary to meet critical service level agreements (SLAs). IO Insight and VM Insight monitoring gathers statistics, including device and virtual machine (VM) latency and IOPS metrics, for early detection of application and device-level performance degradation. Administrators can proactively monitor against SLAs, reduce time to resolution, obtain crucial insight for troubleshooting and take action to optimize the end-to-end performance that ensures high availability.

IO Insight and VM Insight monitoring enables administrators to:

  • Gain deep insights into performance and availability across physical and virtual infrastructures
  • Quickly identify issues and understand key performance, health and utilization trends
  • Monitor application flows with no physical taps, no downtime and no disruption
  • Optimize performance and safeguard operational stability

Simplified management and robust network analytics

Fabric Vision technology2 enables administrators to avoid problems before they impact operations, helping their organizations meet SLAs. Fabric Vision technology includes:

  • IO Insight: Proactively monitors application- and devicelevel I/O to gain deep insights into performance and availability, ensuring predictable performance and operational stability.
  • VM Insight: Monitors VM performance throughout a storage fabric to quickly determine the source of VM/application performance anomalies and fine-tune the infrastructure based on VM/application requirements.
  • Monitoring and Alerting Policy Suite (MAPS): Leverages prebuilt, rule-/policy-based templates within MAPS to simplify fabric-wide threshold configuration, monitoring and alerting.
  • Fabric Performance Impact (FPI) Monitoring: Automatically detects and alerts administrators to different latency severity levels, and identifies slow-drain devices that could impact network performance.
  • Dashboards: Displays an overall storage area network (SAN) health view, along with details on out-of-range conditions, to help administrators easily identify trends and quickly pinpoint issues.
  • Configuration and Operational Monitoring Policy Automation Services Suite (COMPASS): Simplifies deployment, safeguards consistency and increases operational efficiencies of larger environments with automated switch and fabric configuration services.
  • ClearLink Diagnostics: Ensures optical and signal integrity for Fibre Channel optics and cables, simplifying deployment and support of high-performance fabrics.
  • Flow Vision: Enables administrators to identify, monitor and analyze specific application flows in order to simplify troubleshooting, maximize performance, avoid congestion and optimize resources. Flow Vision includes flow monitor, flow generator and flow mirroring.
  • Forward Error Correction (FEC): Enables recovery from bit errors in device connections and ISLs, enhancing transmission reliability and performance.
  • Credit Loss Recovery: Helps overcome performance degradation and congestion due to buffer credit loss.

IBM Network Advisor

IBM Network Advisor SAN management simplifies Fibre Channel network management and helps organizations reduce deployment and configuration times and accelerate troubleshooting by allowing fabrics, switches and ports to be managed as groups with customizable dashboards that graphically display performance and health indicators.

A building block for virtualized, private cloud storage

SAN64B-6 provides a critical building block for today’s highly virtualized and cloud environments by meeting the highthroughput demands of solid-state disks (SSDs), supporting multitenancy capabilities required in cloud environments, and increasing security and efficiency with in-flight encryption and data compression over ISL connections.

Access gateway mode

SAN64B-6 can be deployed as a full-fabric switch or as an access gateway using the N_Port ID Virtualization (NPIV) standards. Access Gateway mode simplifies topologies and heterogeneous connectivity to other SAN fabrics by making the switch transparent to the SAN fabric, greatly reducing device management and allowing greater SAN scalability.

Benefits:

Increase performance

Shatter application performance barriers with up to 100 million input/output operations per second (IOPS) and increased performance for demanding workloads across 32 Gbps links.

Gain industry-leading port density

Leverage high scalability in an ultra-dense, 1U, 64-port switch and deliver greater hardware consolidation with fewer switches.

Improve hardware consolidation

Utilize 128 Gbps port speeds for greater hardware consolidation with fewer optics and cables required to connect switches.

Uncover performance issue

Detect degraded application performance with built-in device latency and IOPS metrics.

Improve resiliency

Increase resiliency by automatically discovering and recovering from device or network errors. Simplify troubleshooting with real-time and historical visibility in a single dashboard.

Ensure predictable performance

Validate and benchmark the physical infrastructure to ensure predictable performance prior to deployment.

Specifications:


SAN64B-6 Switch Specifications
System Architecture
Fibre Channel ports Switch mode (default): Minimum of 24 ports and maximum of 64 ports configuration. Port numbers above minimum are enabled through 12-port SFP+ increments with Ports on Demand (PoD) licenses, and through one 4-port QSFP PoD, providing 16-port increments through a Q-Flex license: E_Ports, F_Ports, D_Ports, and EX_Ports.

Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports.
Scalability Full-fabric architecture with a maximum of 239 switches
Certified Maximum 6,000 active nodes; 56 switches, 19 hops in Fabric OS fabrics; larger fabrics certified as required.
Performance Fibre Channel: 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 14.025 Gbps line speed, full duplex; auto-sensing of 4, 8, 16, and 32 Gbps port speeds
Fibre Channel performance
  • 4.25 Gbps line speed, full duplex
  • 8.5 Gbps line speed, full duplex
  • 10.53 Gbps line speed, full duplex
  • 14.025 Gbps line speed, full duplex
  • 28.05 Gbps, full duplex
  • Auto-sensing of 4, 8, 16, 32 Gbps port speeds and capable of supporting 128 Gbps speeds
  • 10 Gbps optionally programmable to fixed port speed.
ISL Trunking Frame-based trunking with up to eight 32 Gbps ports per ISL trunk; up to 256 Gbps per ISL trunk.
Exchange-based load balancing across ISLs with DPS included in Fabric OS.
Aggregate bandwidth 2 Tbps
Maximum fabric Latency Latency for locally switched ports is 700 ns; encryption/compression is 1 µsec per node.
Maximum frame size 2,112-byte payload
Frame buffers 15,360 dynamically allocated
Classes of service Class 2, Class 3, Class F (inter-switch frames)
Port types D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port optional port-type control.
b-type Access Gateway mode: F_Port and NPIV-enabled N_Port.
Data traffic types Fabric switches supporting unicast
Hot-swap components Power supplies, fan modules, SFPs.
Warranty One-year; customer-replaceable unit (CRU); and onsite, next-business-day response; warranty service upgrades are available
Media types
  • 32 Gbps: SAN64B-6 requires b-type hotpluggable SFP+, LC connector; 32 Gbps SWL.
  • 16 Gbps: SAN64B-6 requires b-type hotpluggable SFP+, LC connector; 16 Gbps SWL.
  • 10 Gbps: SAN64B-6 requires b-type hotpluggable SFP+, LC connector; 10 Gbps SWL.
  • 128 Gbps: SAN 64B-6 requires b-type hot-pluggable QSFP, MPO connector; 128 SWL Fibre Channel distance subject to fiber-optic cable and port speed.
USB One USB port for system log file downloads or firmware upgrades
Fabric services
  • Monitoring and Alerting Policy Suite (MAPS)
  • Flow Vision
  • Adaptive Networking (Ingress Rate Limiting, Traffic Isolation, QoS)
  • Fabric Performance Impact (FPI) Monitoring
  • Slow Drain Device Quarantine (SDDQ)
  • Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning, peer zoning, target-driven zoning)
  • Dynamic Fabric Provisioning (DFP)
  • Dynamic Path Selection (DPS)
  • Extended Fabrics
  • Enhanced BB Credit Recovery
  • FDMI
  • Frame Redirection
  • Framebased Trunking
  • Fibre Channel shortest path first (FSPF)
  • Integrated Routing
  • Internet Protocol over Fibre Channel (IPFC)
  • ISL Trunking
  • Management Server
  • NPIV
  • Time Server
  • Registered State Change Notification (RSCN)
  • Reliable Commit Service (RCS)
  • Simple Name Server (SNS)
  • Virtual Fabrics (Logical Switch, Logical Fabric)
  • Read Diagnostics Parameter (RDP)
Extension
  • Fibre Channel, in-flight compression (b-type LZO) and encryption (AES-GCM-256); integrated optional
  • 10 Gbps Fibre Channel for dense wavelength division multiplexing (DWDM) metropolitan area network (MAN) connectivity
Management
Supported Management software
  • HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; NTP v3
  • Advanced Web Tools
  • IBM Network Advisor SAN Enterprise or IBM Network Advisor SAN Professional/Professional Plus
  • EZSwitch
  • Command Line Interface (CLI)
  • SMI-S compliant
  • REST AP
  • Administrative Domains
  • Trial licenses for add-on capabilities
Security
  • AES-GCM-256 encryption on ISLs
  • DH-CHAP (between switches and end devices)
  • FCAP switch authentication
  • HTTPS
  • IPSec
  • IP filtering
  • LDAP with IPv6
  • OpenLDAP
  • Port Binding
  • RADIUS
  • TACACS+
  • User-defined Role-Based Access Control (RBAC)
  • Secure Copy (SCP)
  • Secure RPC
  • Secure Syslog
  • SFTP
  • SSH V2
  • SSL
  • Switch binding
  • Trusted switch
Management access 10/100/1000 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port
Diagnostics
  • ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance
  • Flow mirroring
  • Built-in flow generator
  • POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, nondisruptive
  • Daemon restart, optics health monitoring,power monitoring, RAStrace
Mechanical
Enclosure Front-to-back airflow; non-port-side exhaust; power from back, 1U
Back-to-front airflow; non-port-side intake; power from back, 1U
Size Width: 44.00 cm (17.32 in.)
Height: 4.39 cm (1.73 in.)
Depth: 35.56 cm (14 in.)
System Weight 7.73 kg (17 lb) with two power supply FRUs, without transceivers
Environmental
Operating environment Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
Non-operating environment Temperature: -25°C to 70°C/-13°F to 158°F
Humidity: 10% to 90% (non-condensing)
Operating altitude Up to 3,000 m (9,842 ft)
Storage altitude Up to 12 km (39,370 ft)
Shock Operating: Up to 20 G, 6 ms half-sine
Non-operating: Half sine, 33 G 11 ms, 3G axis
Vibration Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz
Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz
Heat dissipation 64 ports at 716 BTU per hour
Power
Power supply Dual, hot-swappable redundant power supplies with integrated system cooling fans
Two airflow options available: Non-port side intake and non-port side exhaust
AC input 90 V to 264 V ~3.5 A
AC input line frequency 47 Hz to 63 Hz
Power consumption 206 W with all 64 ports populated with 48 × 32 Gbps SFP+ SWL optics and 4× (4 × 32 Gbps) QSFP SWL optics
85 W for empty chassis with no optics
